Extracting data from a 2D contour plot in Matlab

Posted 21 févr. 2011, 02:30 UTC−5 Interfacing Version 4.0a 1 Reply

Oleksandr Barannyk
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hello,

I have a 2D contour plot (Cut plane>2D plot group) in Matlab that I obtained through livelink, and I want to do some analysis on its data. The 2D cut plane goes through total acoustic pressure in my 3D model.

From what I understand, in order to get that pressure data I need to run in matlab:

[Ac_P] = mphinterp(model,{'acpr.p_t'},'dataset','cpl1');

What I am getting as a result of that is a 6x14685 matrix which when plotted as a contour looks like a real mess, and nowhere close to the plot I exported to Matlab...

Anything I am doing wrong here?

Thanks in advance!

Attachments:

1 Reply Last Post 21 févr. 2011, 20:49 UTC−5
Oleksandr Barannyk
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 21 févr. 2011, 20:49 UTC−5
Well, I went through the test problem presented in the Livelink users guide. I loaded "heat_convection_2d.mph" from model library. I set up cut line (0.2, 0) - (0.2,1) [Plot Group2 in my case] and exported data along it to Matlab:

model = ModelUtil.model('heat2D');
figure(1)
mphplot(model,'pg2','rangenum',1)
[y,T] = mphinterp(model,{'y','T'},'dataset','cln1');
iy=~isnan(y);
iT=~isnan(T);
y=y(iy); T=T(iT);
figure(2)
plot(y,T);

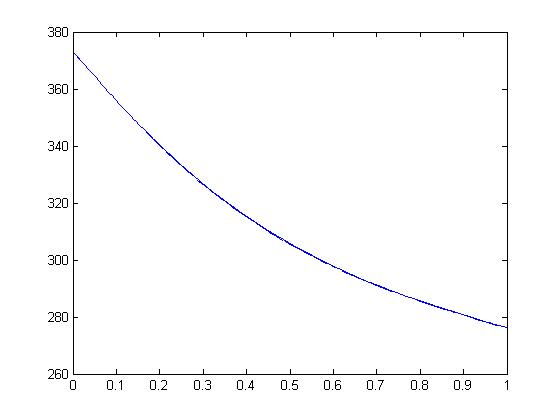

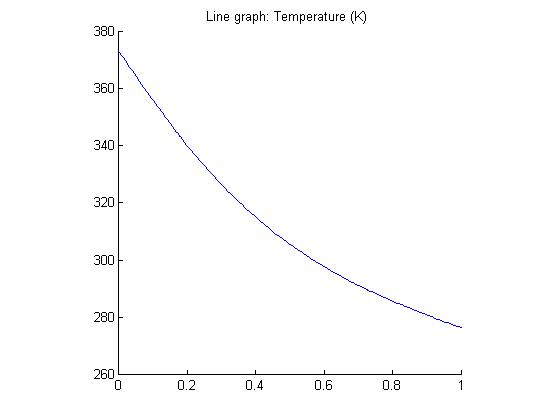

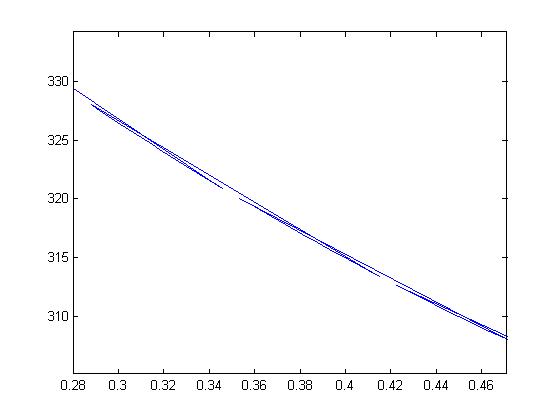

But Data plotted with Matlab does not match what I've plotted with Comsol (see attached closeup graphs).

Any idea why?

Thanks in advance
Well, I went through the test problem presented in the Livelink users guide. I loaded "heat_convection_2d.mph" from model library. I set up cut line (0.2, 0) - (0.2,1) [Plot Group2 in my case] and exported data along it to Matlab: model = ModelUtil.model('heat2D'); figure(1) mphplot(model,'pg2','rangenum',1) [y,T] = mphinterp(model,{'y','T'},'dataset','cln1'); iy=~isnan(y); iT=~isnan(T); y=y(iy); T=T(iT); figure(2) plot(y,T); But Data plotted with Matlab does not match what I've plotted with Comsol (see attached closeup graphs). Any idea why? Thanks in advance
