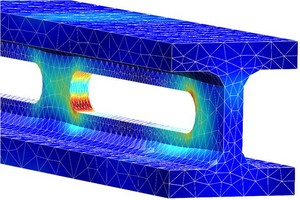

Parameterized I-Beam

Application ID: 4743

This example shows how to parameterize a CAD model by deforming the corresponding finite element mesh.

The method enables geometry parameterization of non-parameterized CAD models such as:

- models created by the built-in COMSOL CAD tools

- imported neutral CAD files such as .igs or .step

- imported .x_t, .sat, or other vendor-specific formats

- imported finite element mesh files

The module used is the Structural Mechanics Module.

Ce modèle a été construit avec les éléments suivants:

Structural Mechanics Module
