Winding Designer for Electrical Machines
Application ID: 44371
You can use this simulation app as a guide on how to automate selections using the Application Builder. In the example app, the selection algorithm depends on the relationship between the electrical and mechanical angles, which are generally used in the design of windings in electrical machines. Get more details in our blog post: How to Automate Winding Design in Electrical Machines with an App.

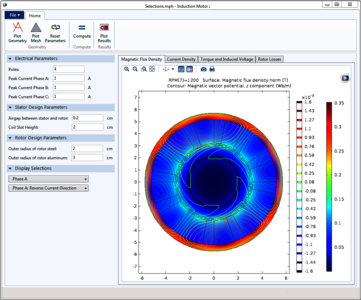

This app makes use of the benchmark example Three-Phase Induction Motor: TEAM Workshop Problem 30. The geometry has been parameterized to enable the app's end user to model different types of induction machines.
