Simulation of an Immunodetection System Based on Magnetic Nanoparticles

A. Rabehi [1], H. Kokabi [1], L. Chen [2], K. A. Ngo [3], H.-J. Krause [2]
[1] Sorbonne Universités, Laboratoire d’Electronique et Electromagnétisme, Paris, France
[2] Peter Grünberg Institute, Bioelectronics, Forschungszentrum Jülich, Germany
[3] Sorbonne Universités, Laboratoire Interfaces et Systemes Electrochimiques (LISE), Paris, France
Publié en 2016

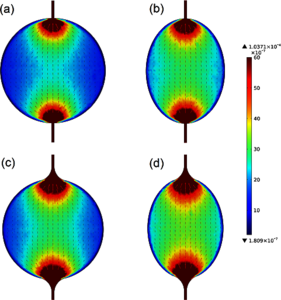

In a first approach towards application of the magnetic frequency mixing technique to microfluidic structures, microplanar coils have to be designed along with sample reservoir. For this, a COMSOL Multiphysics® electrical model along with an analytical calculation is used in order to optimize the dimensions of the coil. This is to ensure a proper distribution and value of magnetic flux density in the sample area. Another multiphysics model uses the Heat Transfer Module and the AC/DC Module to study the effect of the excitation current on the temperature variation of the reservoir. At last, to ensure a good distribution of fluids in the sample reservoir, the Microfluidics Module is used.
