JDR Cables Performs Multiphysics Analyses of Subsea Umbilicals and Cables
Tim Poole, JDR Cables, Cambridgeshire, UK
and
Mark Yeoman, Continuum Blue, Hengoed, UK
JDR Cables designs-to-spec and manufactures subsea umbilical systems of cables and reelers for the oil and gas and renewable energy industries. In these designs, the harsh environments of deep water pressure, wind and waves, as well as the rough ocean floor must all be considered, along with the forces acting on cables from being pulled and deployed through tight-radius reels. A challenge for Tim Poole of JDR Cables, and Mark Yeoman of COMSOL Certified Consultant, Continuum Blue, has been to do this in systems where over 3,000 localized regions of high contact have been identified.
They turned to COMSOL Multiphysics to perform the local stress, fatigue and thermal analyses. Firstly, they created 3D cable structures with a proprietary program and included it through COMSOL’s Livelink™ for MATLAB®.
From here, they could explore many loading conditions on various cable designs, and compare the results in a very short space of time. Their models cost half as much as physical testing, and led to reductions in manufacturing costs.
Suggested Stories

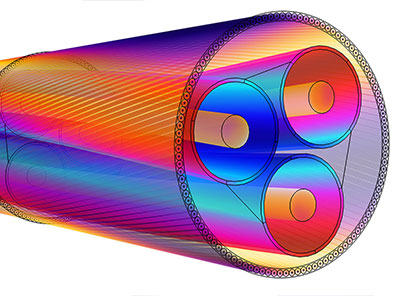

3D Modeling of Armor Losses in High-Voltage Cables
NKT HV Cables used numerical modeling to investigate electromagnetic fields and calculate armor losses in 3D cable ...
Simulation Helps Improve Atmosphere Revitalization Systems for Manned Spacecraft
To ensure astronaut safety on space missions, it is necessary to routinely revitalize the atmosphere in manned ...
Man-Made Stars: Evaluating Structural Integrity in High-Performance Nuclear Fusion Machines for Power Generation
For over 50 years, power generation through nuclear fusion has been the focus of international research efforts to ...

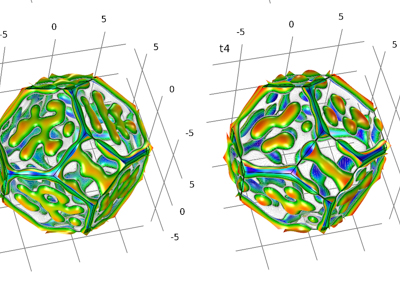

Illuminating Complex Material Behavior with Multiphysics Simulation
