How to join two components

Posted 21 juin 2020, 11:40 UTC+2 Structural & Acoustics, Bioengineering, Modeling Tools & Definitions Version 5.5 3 Replies

Margarida Chiote
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hello, I have two components, one represents the femur bone and the other an implant. I want to study applied forces to this implant but first i have join these two components in a way that can be seen in the picture. Any ideas on how to do that? ![https://www.sciencephoto.com/media/520505/view/prosthetic-hip-joint-and-gruen-zones]

3 Replies Last Post 21 juin 2020, 19:13 UTC+2
Edgar J. Kaiser Certified Consultant
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 5 years ago 21 juin 2020, 14:34 UTC+2

Margarida,

any two domains sharing a boundary are joined by default as long as you choose the default form union at the end of the geometry sequence.

Cheers Edgar

-------------------
Edgar J. Kaiser
emPhys Physical Technology
www.emphys.com
Margarida, any two domains sharing a boundary are joined by default as long as you choose the default form union at the end of the geometry sequence. Cheers Edgar
Margarida Chiote
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 5 years ago 21 juin 2020, 17:03 UTC+2

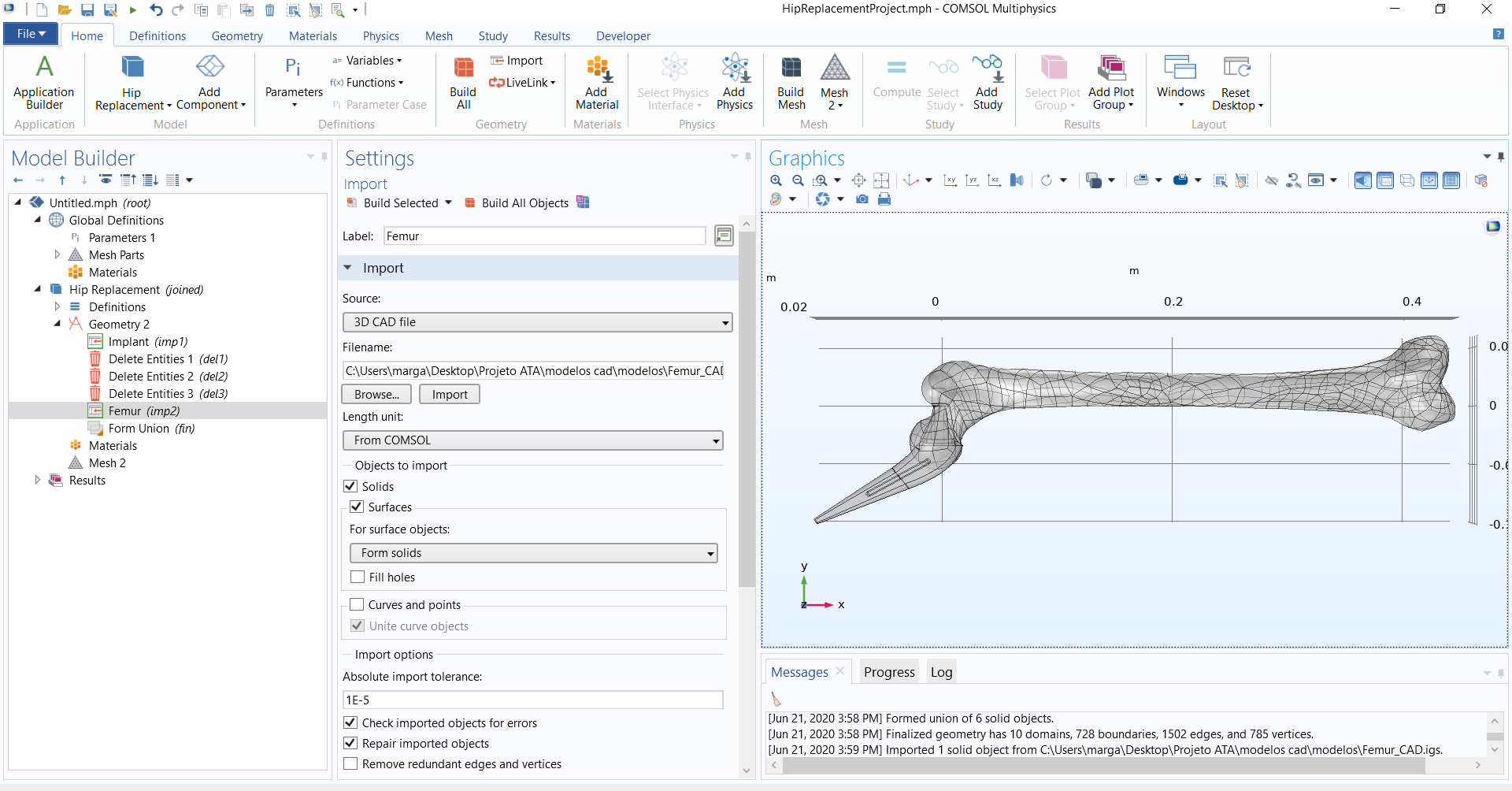

Thank you for your help. I've tried an automatic union but the components don't seem to align in a right way as seen in the picture.

Thank you for your help. I've tried an automatic union but the components don't seem to align in a right way as seen in the picture.
Edgar J. Kaiser Certified Consultant
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 5 years ago 21 juin 2020, 19:13 UTC+2
Updated: 5 years ago 21 juin 2020, 20:35 UTC+2

Yes the patient might be a little unhappy with such a result. You can translate and rotate the parts for proper alignment.

-------------------
Edgar J. Kaiser
emPhys Physical Technology
www.emphys.com
Yes the patient might be a little unhappy with such a result. You can translate and rotate the parts for proper alignment.
