Face in geometry extrusion

Posted 21 juil. 2020, 17:16 UTC+2 MEMS & Nanotechnology, MEMS & Piezoelectric Devices 3 Replies

GA
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Hello all,

I am using COMSOL 5.4 I've used plane geomtry to create some meander structure and extrude that part. I've used many rectangels and combined it together to form a union.

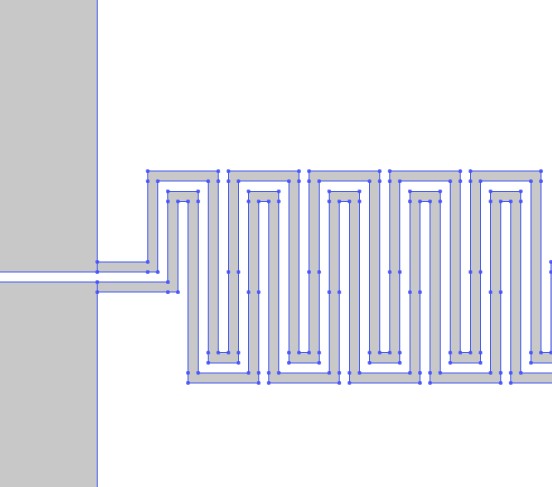

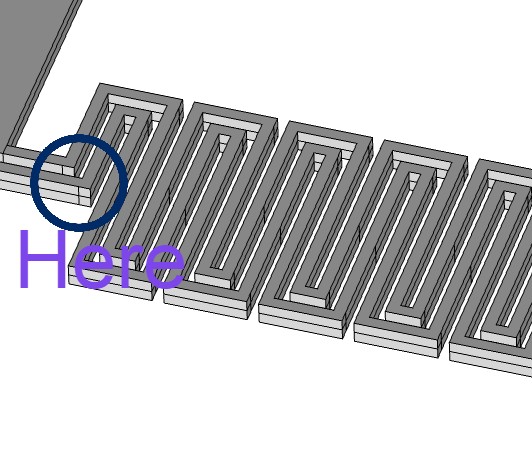

In plane geomtry, i dont see any boundaries as I removed it. But when i extrude the plane, i see faces as shown in the image.

Please let me know what could be the solution.

Regards, GA

3 Replies Last Post 7 août 2020, 15:07 UTC+2
Edgar J. Kaiser Certified Consultant
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 5 years ago 21 juil. 2020, 17:52 UTC+2
Updated: 5 years ago 21 juil. 2020, 17:53 UTC+2

Looks like you must remove the points inside the straight lines before extruding. Or construct the meander with a polygon.

-------------------
Edgar J. Kaiser
emPhys Physical Technology
www.emphys.com
Looks like you must remove the points inside the straight lines before extruding. Or construct the meander with a polygon.
GA
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 5 years ago 7 août 2020, 09:28 UTC+2
Updated: 5 years ago 7 août 2020, 09:31 UTC+2

Is there any way to remove those points?

I don't see any Union or Conversion options to do that.

I've attached the model in this link (the model is more than 5-MB): https://drive.google.com/file/d/1AIY-FJc3_uztqrbJhTl09hU0ohLHzNke/view?usp=sharing

Regards, GA

Is there any way to remove those points? I don't see any Union or Conversion options to do that. I've attached the model in this link (the model is more than 5-MB): https://drive.google.com/file/d/1AIY-FJc3_uztqrbJhTl09hU0ohLHzNke/view?usp=sharing Regards, GA
Edgar J. Kaiser Certified Consultant
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 5 years ago 7 août 2020, 15:07 UTC+2

Check the 'Remove Entities' function in the geometry menu.

-------------------
Edgar J. Kaiser
emPhys Physical Technology
www.emphys.com
Check the 'Remove Entities' function in the geometry menu.
