Use contour plots as geometric entities

Posted 19 nov. 2012, 11:15 UTC−5 Geometry, Results & Visualization 6 Replies

Josh Thomas Certified Consultant
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

I saw in the release highlight video that in v4.3a that you can use contour plots as geometric entities.

How do you do this?
6 Replies Last Post 13 oct. 2015, 10:32 UTC−4
Ivar KJELBERG COMSOL Multiphysics(r) fan, retired, former "Senior Expert" at CSEM SA (CH)
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 20 nov. 2012, 01:29 UTC−5
Hi

indeed we are a few on the Forum here interested in this, but havent got/found the trick yet ;)
Perhaps somebody from COMSOl could give us a hint.

--
Good luck
Ivar
Hi indeed we are a few on the Forum here interested in this, but havent got/found the trick yet ;) Perhaps somebody from COMSOl could give us a hint. -- Good luck Ivar
Magnus Ringh COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 20 nov. 2012, 07:31 UTC−5
Hi,

It is possible to use contour plots as geometric entities with the following steps:

1. Create a contour plot with a single contour.
2. Add it as a Plot data node under Export.
3. Export the contour data to a text file as a Contour plot with the Sectionwise data format.
4. Add an Interpolation Curve node to the Geometry sequence.
5. In the Interpolation Curve settings, use File as the Data source and Sectionwise as the Data format, and browse to the exported contour data file. Click Build Selected to see the curve. You may need to adjust the Relative tolerance setting to get a smooth curve.
6. When the geometry is rebuilt, the curve is included.

You can add several contours by exporting the data for each curve and adding Interpolation Curve nodes for each contour.

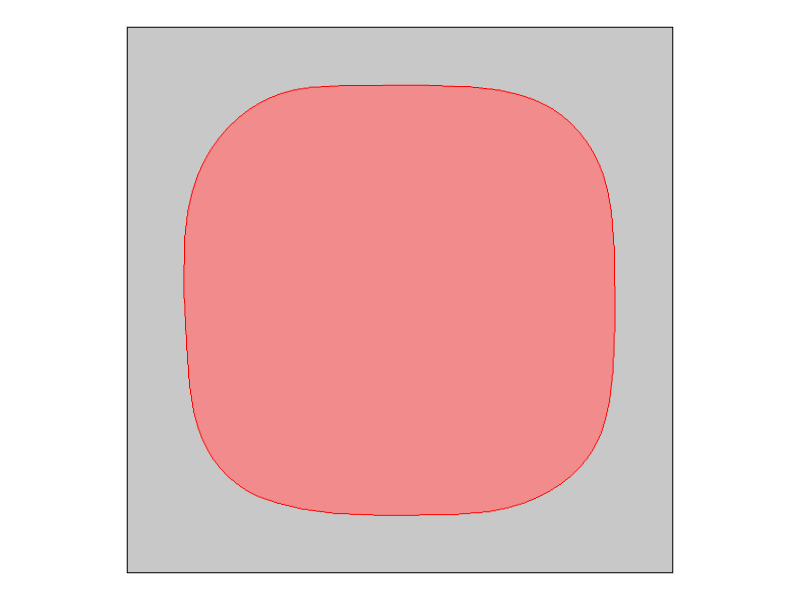

I have attached an image of an interpolation curve for a simple example, using a contour for a level of the solution to Poisson's equation on a square.

Best regards,
Magnus Ringh, COMSOL
Hi, It is possible to use contour plots as geometric entities with the following steps: 1. Create a contour plot with a single contour. 2. Add it as a Plot data node under Export. 3. Export the contour data to a text file as a Contour plot with the Sectionwise data format. 4. Add an Interpolation Curve node to the Geometry sequence. 5. In the Interpolation Curve settings, use File as the Data source and Sectionwise as the Data format, and browse to the exported contour data file. Click Build Selected to see the curve. You may need to adjust the Relative tolerance setting to get a smooth curve. 6. When the geometry is rebuilt, the curve is included. You can add several contours by exporting the data for each curve and adding Interpolation Curve nodes for each contour. I have attached an image of an interpolation curve for a simple example, using a contour for a level of the solution to Poisson's equation on a square. Best regards, Magnus Ringh, COMSOL

Attachments:

Ivar KJELBERG COMSOL Multiphysics(r) fan, retired, former "Senior Expert" at CSEM SA (CH)
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 20 nov. 2012, 07:56 UTC−5
Hi Magnus

Thanks, indeed in 2D it looks simple but not straighforward though, many manual steps, not really to be done for ten models per hours ;) But still thanks for the tip.

What about 2D, the same way with slice plots ?

--
Good luck
Ivar
Hi Magnus Thanks, indeed in 2D it looks simple but not straighforward though, many manual steps, not really to be done for ten models per hours ;) But still thanks for the tip. What about 2D, the same way with slice plots ? -- Good luck Ivar
Josh Thomas Certified Consultant
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 20 nov. 2012, 10:36 UTC−5
Thanks, Magnus and Ivar!

Regards,
Josh
Thanks, Magnus and Ivar! Regards, Josh
Bethany COMSOL Employee

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 27 nov. 2012, 16:31 UTC−5
I just wanted to add to Magnus's comment that there is now a Model Gallery entry on this: www.comsol.com/showroom/gallery/14235/. If you click "Click here to get more information about this model" on this page you will see a step-by-step presentation on how to do this along with an example model that shows this technique implemented in the power transistor model (the original power transistor model is in the Model Gallery here: www.comsol.com/showroom/gallery/8577/). Note that this same general procedure is applicable for using Contour lines in both 2D and 3D geometries.

Best regards,
Bethany Moatts
COMSOL
I just wanted to add to Magnus's comment that there is now a Model Gallery entry on this: http://www.comsol.com/showroom/gallery/14235/. If you click "Click here to get more information about this model" on this page you will see a step-by-step presentation on how to do this along with an example model that shows this technique implemented in the power transistor model (the original power transistor model is in the Model Gallery here: http://www.comsol.com/showroom/gallery/8577/). Note that this same general procedure is applicable for using Contour lines in both 2D and 3D geometries. Best regards, Bethany Moatts COMSOL
Johanna Lippmann-Pipke
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago 13 oct. 2015, 10:32 UTC−4
Dear Bethany,

it seems like the mentioned link to the step-by-step presentation onhow to do this is no longer existent or inaccurate. Can you help? Thanks, Johanna


I just wanted to add to Magnus's comment that there is now a Model Gallery entry on this: www.comsol.com/showroom/gallery/14235/. If you click "Click here to get more information about this model" on this page you will see a step-by-step presentation on how to do this along with an example model that shows this technique implemented in the power transistor model (the original power transistor model is in the Model Gallery here: www.comsol.com/showroom/gallery/8577/). Note that this same general procedure is applicable for using Contour lines in both 2D and 3D geometries.

Best regards,
Bethany Moatts
COMSOL


Dear Bethany, it seems like the mentioned link to the step-by-step presentation onhow to do this is no longer existent or inaccurate. Can you help? Thanks, Johanna [QUOTE] I just wanted to add to Magnus's comment that there is now a Model Gallery entry on this: http://www.comsol.com/showroom/gallery/14235/. If you click "Click here to get more information about this model" on this page you will see a step-by-step presentation on how to do this along with an example model that shows this technique implemented in the power transistor model (the original power transistor model is in the Model Gallery here: http://www.comsol.com/showroom/gallery/8577/). Note that this same general procedure is applicable for using Contour lines in both 2D and 3D geometries. Best regards, Bethany Moatts COMSOL [/QUOTE]
