Total Internal Reflection
Application ID: 71841
The bidirectional formulation of the Beam Envelopes interface can be used not only for counter-propagating wave simulations but also for waves propagating to up to two directions.

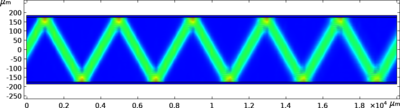

In this model, an almost collimated Gaussian beam is excited at the left boundary and exhibits total internal reflection (TIR) at the interface of two media on the sides and gets out the domain from the right boundary at 20 mm away.
This is useful for virtual reality (VR) simulation.
