用于自由空间和光波导之间的高效率耦合器

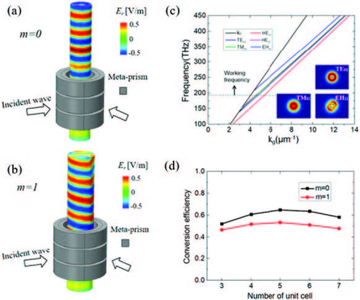

In this work, we design a type of meta-prism which can provide high-efficiency coupling between free space and optical waveguides at infrared frequencies. The meta-prism is composed of an ABA multilayer structure with a fixed total thickness. By varying the filling ratio of the components, the phase of the transmitted wave can be tuned to almost cover the whole range of [0, 2π], while maintaining a robust high transmittance at the same time. Through two examples, we demonstrate the efficient coupling of light into optical waveguides such as metal wires and optical fibers in a noninvasive way. We also demonstrate an approach to generate waveguide modes with different orbital angular momentums. The meta-prism, as a type of compact and efficient optical coupler, may have important applications in nanophotonics and optical communication.
Téléchargement
- 徐_presentation.pdf - 1.78MB
- 徐_paper.pdf - 0.95MB
- 徐_abstract.pdf - 0.11MB
