Transient Simulation of an Electrochemical Machining Process for Stamping and Extrusion Dies

M. Penzel [1], M. Hackert-Oschätzchen [2], M. Kreißig [1], M. Kowalick [1], M. Zinecker [1], A. Schubert [1], G. Meichsner [3],
[1] Professorship Micromanufacturing Technology, Technische Universität Chemnitz, Chemnitz, Germany
[2] Professorship Micromanufacturing Technology, Technische Universität Chemnitz, Chemnitz, Germany; Fraunhofer Institute for Machine Tools and Forming Technology, Chemnitz, Germany
[3] Fraunhofer Institute for Machine Tools and Forming Technology, Chemnitz, Germany
Publié en 2016

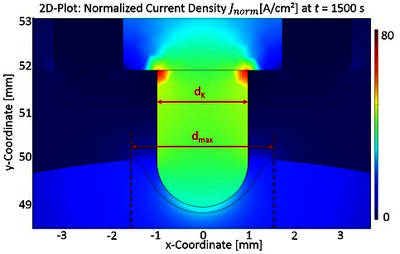

Precise electrochemical machining (PEM) is a non-conventional machining technology, based on anodic dissolution of metallic work-pieces. In this study an additional extension of the precise electrochemical machining with a precise angle-controlled cylinder positioning is aimed. Due to the help of the angle-controlled cylinder positioning, with PEM e.g. stamping and extrusion dies can be machined. To investigate the modified process transient simulation models have been developed. The models are based on the Deformed Geometry, Electric Currents and Wall Distance interfaces to compute the resulting ablation.
