Atmospheric Corrosion of a Busbar
Application ID: 47801

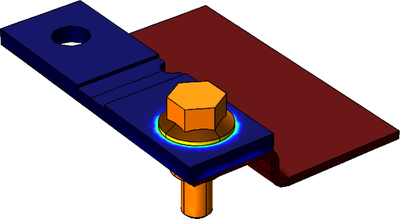

This model simulates atmospheric galvanic corrosion of a busbar, which includes a copper flange, an aluminum alloy flange in contact with a zinc nut and bolt. The Secondary Current Distribution interface is used to solve for the electric potential in electrode domain and Current Distribution, Shell interface is used to solve for the electrolyte potential in the thin electrolyte layer.
The electrolyte film thickness and conductivity depend on the relative humidity of the surrounding air. The limiting oxygen reduction current density depends on the oxygen diffusivity and solubility in this model.
This model example illustrates applications of this type that would nominally be built using the following products:
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the Grille de Spécifications and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
