Diesel Particulate Filter Analysis Using an Acoustic Transfer Matrix
Application ID: 79781
Diesel particulate filters (DPFs) are designed to remove and filter soot (diesel particles) from the exhaust of diesel engine vehicles. The filters in such systems are typically structured with long, air-filled channels surrounded by a porous medium that retains the soot.
Although the main function of a DPF is filtering the soot in the exhaust flow, the DPF also has acoustic damping properties that relate to the muffler system. The filters typically contain several thousand air channels, which can make the individual modeling of all of the channels computationally expensive.

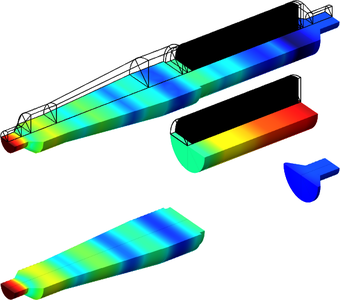

In this model, the acoustics in a DPF are simulated. A method to reduce the complexity of the computation is presented by obtaining the transfer matrix of the filter itself. The transfer matrix is coupled to the surrounding cavities to obtain the total transmission loss (TL).
This model example illustrates applications of this type that would nominally be built using the following products:
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the Grille de Spécifications and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
