Duct with Right-Angled Bend
Application ID: 67601

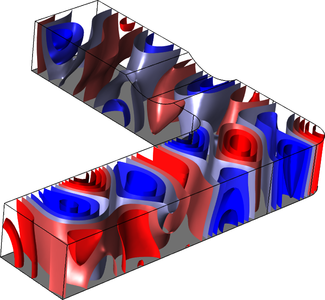

In this tutorial the acoustic behavior of a duct or waveguide with a right angled bend is analyzed. The model uses port boundary conditions at the inlet and outlet. The ports can capture and treat non-plane propagating modes in waveguides, extending the analysis above the first cutoff frequency. The transmission loss and the scattering coefficients of the system are determined.
