Dynamics of a Roller Conveyor
Application ID: 102661
Roller conveyors are commonly used in warehouses, manufacturing units and baggage handling applications to transport objects from one place to other by gravity, power, or manually. A typical roller conveyor consists of an array of moving rollers arranged either in a straight or curved manner and supported by frames. It is generally made of plastic, mild steel or stainless steel.

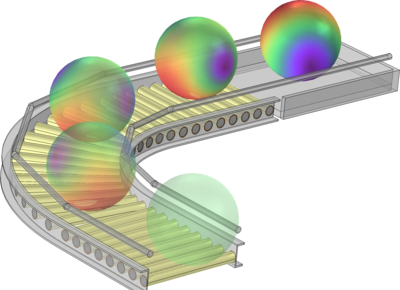

This model simulates the dynamics of a roller conveyor transporting a spherical object or a ball. Here, multiple cylindrical rollers are inserted between two C-sectioned beams. Cylindrical guideways are provided on both sides of the conveyor to prevent the ball falling off from rollers. The rollers are rotating about their axes, while the frames and guideways are fixed. On reaching the other end, the ball is collected in a rectangular tray. All components of the system are assumed rigid. Using rigid body contact with friction, contact is modeled between ball and rollers, ball and guideways, as well as ball and the surfaces of the tray. The connection between rollers and the frame is simplified using hinge joints. A transient study is performed to analyze the dynamics of ball, contact and friction forces, and energy dissipation due to friction.
