Electrochemical Impedance Spectroscopy in a Fuel Cell

Application ID: 218

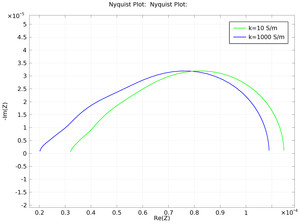

A fuel cell unit cell is modeled using the full Butler-Volmer expression for the anodic and cathodic charge transfer reactions. The anodic and cathodic overpotentials depend on the local ionic and electronic potentials, which are obtained from the charge balance equations for ionic and electronic current. A small sinusoidal perturbation of the potential around a given cell voltage is applied and the frequency of this perturbation is varied from fractions of a Hertz to several hundred thousands Hertz. The phase shift at the different frequencies is studied.

Ce modèle a été construit avec les éléments suivants:

Batteries & Fuel Cells Module

The combination of COMSOL® products required to model your application depends on the physics interfaces that define it. Particular physics interfaces may be common to several products (see the Specification Chart for more details). To determine the right combination of products for your project, you should evaluate all of your needs in light of each product\'s capabilities, consultation with the COMSOL Sales and Support teams, and the use of an evaluation license.
