Mechanism Submerged in Fluid
Application ID: 70251

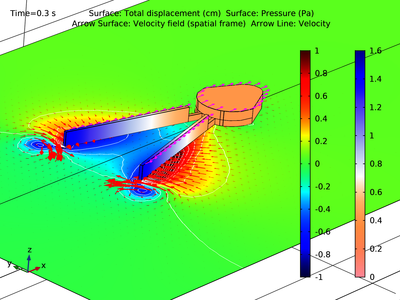

This example illustrates the modeling of a multibody mechanism submerged in fluid. The mechanism considered here consists of two fins connected to a central rigid body through hinge joints. A transient fluid-structure interaction problem is solved to simulate the swimming behavior where fin rotation generates a forward velocity in the mechanism.
The fluid-structure interaction is modeled on the pairs between the fluid and solid boundaries. A bidirectional coupling is assumed between fluid flow and the multibody model of the mechanism.
This model example illustrates applications of this type that would nominally be built using the following products:
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the Grille des Spécifications and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
