Modeling Vibration and Noise in a Gearbox

A gearbox is used to transfer power from an engine to its associated wheels or cogs, which can result in radiating noise to the surroundings. This is due to the transmission of undesired lateral and axial forces on the bearings and housing, while transmitting power from one shaft to the other, as well as the vibrations of flexible components, such as the gear meshes, bearings, and housing. By ...

Vibration in an Induction Motor

In the Vibration in an Induction Motor tutorial model, eddy currents are induced in the rotor by time-harmonic currents in the stator windings and rotation of the rotor. Induced currents in the rotor interact with the magnetic field that is produced by the coils to generate the driving torque on the rotor. The air gap between the rotor and stator is asymmetric, resulting in vibrations in the ...

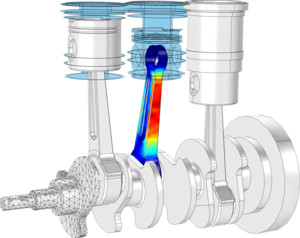

Three Cylinder Reciprocating Engine

In this example, a dynamic analysis of a three-cylinder reciprocating engine is performed to investigate stresses generated during operation, thereby permitting identification of the critical components. Demand for high power output relative to the weight of the engine requires careful design of its components. This model of a reciprocating engine contains a combination of rigid and ...

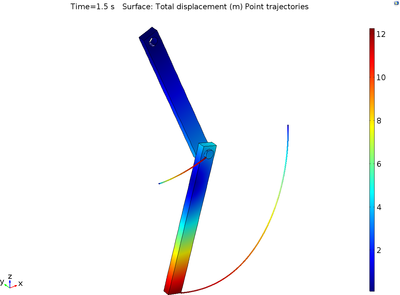

Dynamics of Double Pendulum

This tutorial application demonstrates the modeling of a hinge joint between two bodies in COMSOL Multiphysics. Various nodes available for joints such as Constraints, Locking, Spring, Damper, Prescribed Motion, and Friction are also demonstrated. Many real structures can be approximated with the double pendulum model. Hence a double pendulum model is chosen in this tutorial.

Helicopter Swashplate Mechanism

This model illustrates the operation of a swashplate mechanism used in helicopters to translate the input of helicopter flight control into the motion of the rotor blades, and hence controls the orientation of the rotor blades. In this model, the rotor blades are modeled as either rigid bodies or flexible bodies in two different cases. All other components are assumed to be rigid bodies. Stress ...

Simulating the Motion of a Bicycle on a Flat Surface

This model demonstrates the motion of a bicycle with a hands-free rider when given an initial forward velocity and perturbed with a lean about the forward axis. This is implemented through the Multibody Dynamics module in COMSOL. The wheels of the bicycle have been modelled assuming knife-edge contact with the ground and pure rolling constraints have been implemented. Stability analysis was ...

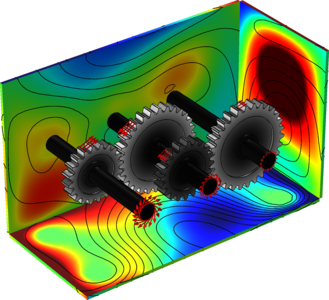

Gear Train Modeling

This model simulates vibrations in a compound gear train. Spur gears, used to model the gear train, are mounted on rigid shafts. The shafts are supported by an elastic housing at both ends. The gear mesh is assumed to be elastic with varying stiffness, which is the source of vibration. A transient analysis is performed to compute the dynamics of the gears as well as the vibrations in the ...

Dynamics of a Gyroscope

Gyroscopes are used for measuring the orientation or maintaining the stability of airplanes, spacecraft, and submarines vehicles in general. They are also used as sensors in inertial guidance systems. This model demonstrates the modeling of a mechanical gyroscope. It analyzes the response of the spinning disc to an external torque coming on the disc due to the rotation of the frame. It is ...

Spring Loaded Centrifugal Governor

A centrifugal governor is used to control the speed of rotating machinery. One of the most common applications is in controlling the RPM of an engine by regulating the fuel supply. This model illustrates the functioning of a spring loaded centrifugal governor. The dynamics of the governor are analyzed under the influence of a centrifugal force, spring force, and damping force. The sleeve ...

Biomechanical Model of the Human Body in a Sitting Posture

The dynamic response of a human body in any vibration environment can be predicted using this biomechanical model. In the automobile industry for instance, this model can be used in ride quality simulation and designing vibration isolators such as seats. In this example, a biomechanical model of the human body is developed to evaluate the dynamic response to the vertical vibrations in a ...
